磁選機系列
適用范圍
本產品廣泛適用于去除石英砂,硅微粉、陶瓷、礦業、化工、電子、食品等行業干粉料中的鐵粉、微鐵粉、弱磁性物質等。
This product, with function of removing iron powder, mirco iron powder, magnetic substance and other magnetism contamination,can be applied in a variety of setting:quartz sand,silica powder,ceramic,mining,chemical,food,and electronic industries etc.
產品特點
·產量大:50m3/H-100m3/H;
·低耗能、無污染、簡單使用、安裝方便、全自動除鐵。無需人工操作;
·磁場梯度高,最高工作磁場可達25000GS;
·除鐵效率高:大于等于95%;
·采用最新永磁磁系分布,使用高效能稀土永磁材料作磁源,其磁吸力更強,磁間距經周密設計,使強磁區域得以充分利用,除鐵更徹底;
·Large output: 50m3/H-100m3/H;
·No energy consumption,no pollution,easy to operate and install,automatically iron removing,no manual work.
·High magnetic field gradient,maximum working magnetic field up to 25000GS;
·Iron and high efficiency greater than or equal 95%;
·Useing the latest permanent magnetic field, It is using high performance rare earthpermanent-magnet material as magnetism source;those magnetic attractions are stronger, Magnetic spacing through careful design, to make full use of the strong magnetic area remove ferrous materials thoroughly
規格型號 Model | 額定電壓 Rated voltage | 額定功率 Rated power | 額定磁場 Fixed magnetic field | 處理能力 Processing capacity | 重量 Weight |
HGYC-Z20K | 380V | 5.5 | 20000GS | 50m3/H-100m3/H | 5500KG |
HGYC-Z25K | 380V | 7.5 | 25000GS | 50m3/H-100m3/H | 7000KG |
專用除鐵設備:漿料、粉料連續作業,微粉、細顆粒及弱磁性物去除,質量可控。

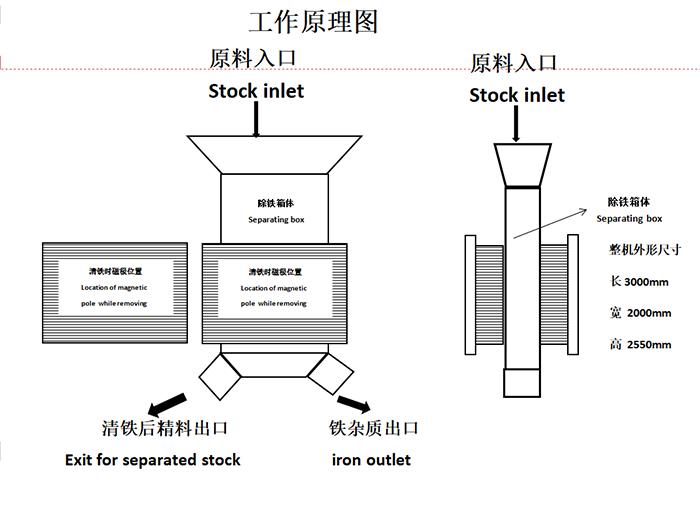

工作原理:
